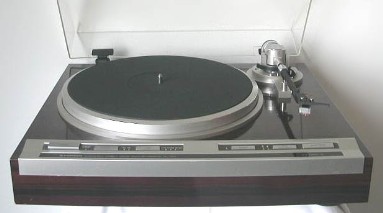

Pioneer PL-707

Two Speed Direct Drive Turntable (1982-83)

Description

The Pioneer PL-707 is a 2-speed, direct-drive turntable system with quartz-locked speed control and a high quality integrated tonearm.

Sub-functions of the PL-707 include auto lead-in, auto-return, auto-cut, repeat, quick play, quick stop, anti-skating, arm elevation, tracking force direct readout and arm height adjustment.

Specifications

Drive system: direct drive

Motor: quartz PLL hall motor

Platter: 310mm aluminium alloy die-cast

Speeds: 33 and 45rpm

Wow and flutter: less than 0.025% WRMS

Signal to noise ratio: more than 80dB

Tonearm: static balance type, straight pipe arm

Effective length: 235mm

Overhang: 15mm

Usable cartridge weight: 3 to 8g

Cartridge: PC-6MC moving coil

Stylus: 0.3 x 0.7mil (PN-6 MC)

Output voltage: 2.2mV

Tracking force: 1.7 to 2.3g (optimal 2.0g)

Frequency response: 10 to 35,000Hz

Recommended load: 50K ohms

Weight: 3.3g

Dimensions: 460 x 164 x 409mm

Overall weight: 8.1kg
