Description

The PL-12D motor drives the platter not via a system of trouble prone idlers but via the tried and true Pioneer belt transmission, shutting out motor vibrations and rumble while improving the overall signal to noise ratio.

The belt, made of a durable polyurethane, resists temperature changes as well as ageing remarkably well.

The 4-pole synchronous motor features highly accurate and stable speed and revolves with practically no vibrations.

Stability is further improved by the fine machining of the zinc-alloy platter.

To keep the stylus tracking perfectly along the centre of the record groove, a specially developed spring activated anti-skating device is provided - it's effect is to guarantee fine channel separation when playing stereo records.

The lightweight and light tracking tonearm is shaped for almost perfect geometry and minimum tracking error.

What's more, it is equipped with an absolute lateral balance weight so that vertical stylus movement will not lead to lateral unbalances.

With it's dark brown, walnut finished base and balanced black-silver colours, the PL-12D looks like the precision instrument it is.

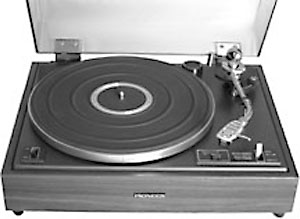

Pioneer PL-12D

2-Speed belt drive turntable

Specifications

Motor: 4-pole synchronous motor

Drive: belt driven

Speeds: 33 and 45rpm

Speed accuracy: 1.0% or less

Wow and flutter: 0.1% WRMS

Rumble: 47dB

Platter: 30cm aluminium alloy

Tonearm: s-shaped pipe

Effective length: 221mm

Dimensions: 430 x 160.5 x 349mm

Weight: 7.5kg
