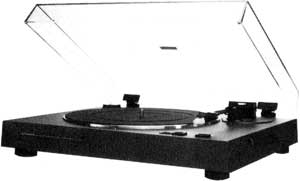

Pioneer PL-110

Two Speed Belt Drive Turntable

Description

The Pioneer PL-110 is a 2-speed, belt-driven turntable with static balance type, straight pipe tonearm.

Sub-functions include an auto-return mechanism and free-stop hinges on the lid.


Specifications

Drive method: belt drive

Motor: DC motor

Speeds: 33 and 45rpm

Platter: 280mm aluminium alloy die-cast

Wow and flutter: 0.05% WRMS

Signal to noise ratio: more than 68dB

Tonearm: static balance type, straight pipe arm

Effective length: 190mm

Overhang: 9.3mm

Cartridge: moving magnet

Stylus: PN-K65 0.5mil diamond

Output: 3.5mV

Tracking force: 2.1 to 2.9g (optimum 2.5g)

Frequency response: 20 to 20,000Hz

Recommended Load: 47k ohm

Cartridge weight: 3.4g

Dimensions: 422 x 108 x 345mm

Weight: 3.2kg

Accessories: EP adaptor
